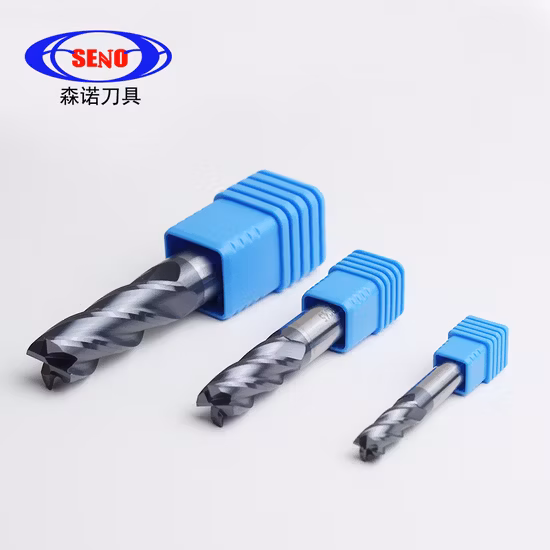

Tungsten Carbide End Mill 45/55/60/65 HRC Square Flat Ball Nose Corner Radius 2/3/4 Flutes Solid Endmill Milling Cutter CNC Machine Cutting Tool Carbide Tool

Overview

Basic Info.

Model NO.	HRC45 D4X50-4F
Tool Life	Durability and Stability
Package	1PC in One Box
Working Material	General Steel
Customization	OEM/ODM
After-Sale Service	Yes
Stock Status	in Stock
Coating Type	Altin
Grain	0.6um
Material Grade	Yl10.2

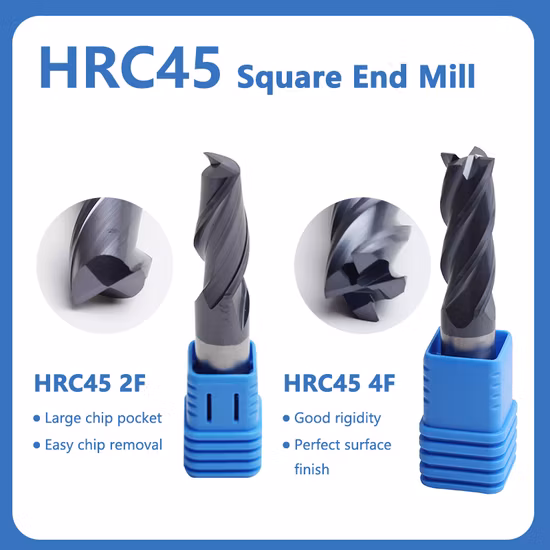

Flutes	2f or 4f

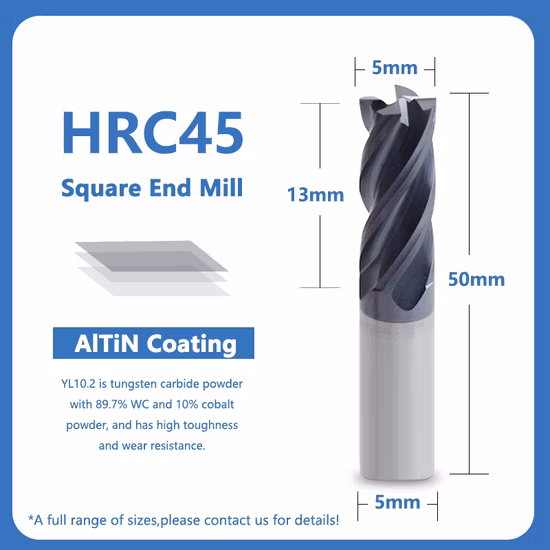

Shape	Square End Mill
HRC Grade	HRC45
Transport Package	Carton
Specification	202020mm
Trademark	SENO
Origin	China
HS Code	8207709000
Production Capacity	50000PCS/Month

Product Description

Hot Sale Products

Product Description

Tungsten Carbide End Mill 45/55/60/65 HRC Square Flat Ball Nose Corner Radius 2/3/4 Flutes Solid Endmill Milling Cutter CNC Machine Cutting Tool Carbide tool

Tungsten Carbide End Mill 45/55/60/65 HRC Square Flat Ball Nose Corner Radius 2/3/4 Flutes Solid Endmill Milling Cutter CNC Machine Cutting Tool Carbide Tool

Product Parameters

Carbide Material Introduction
ENDMILLGRADE	Material Grade	Grain	Introduction	Application
HRC45 carbide material	YL10.2	0.6μm	YL10.2 is tungsten carbide powder with 89.7% WC and 10% cobalt powder, and has high toughness and wear resistance.	Suitable for General Steel
HRC55 carbide material	K30	0.5μm	K30 is ultra fine grain and containes Ni and Cr element, which provides high strength and good toughness.	General Steel, cast Steel,cast iron
HRC60 carbide material	WF25	0.4μm	WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance.	High Hard Material, steel, cast iron, etc
HRC65 carbide material	GU25UF	0.4μm	GU25UF is 0.4micron powder with 12% cobalt and has very high toughness and wear resistance.It is the most suitable for hard cutting.	Titanium Alloy, High-temperature Alloy, Harden material, etc
Stainless Steel material	WF25	0.4μm	WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance.	stainless steel

Coating Introduction
Coating Introduction
ENDMILL GRADE	Coating Name	Color	Hv	μm	Friction	The Max ºC
HRC45 coating	AlTiN	black	3300	1-4	0.7	850ºC
HRC55 coating	TiSiAlN	bronzed	3400	1-4	0.7	900ºC
HRC60 coating	AlCrSiN	black	4000	1-7	0.35	1100ºC
HRC65 coating	nACo 3 Blue	blue	4500	1-7	0.45	1200ºC
Stainless Steel coating	nACo 3 Blue	blue	4500	1-7	0.45	1200ºC

Detailed Photos

Tungsten Carbide End Mill 45/55/60/65 HRC Square Flat Ball Nose Corner Radius 2/3/4 Flutes Solid Endmill Milling Cutter CNC Machine Cutting Tool Carbide Tool
